Sikorsky S-43 Baby Clipper (JRS-1)

Amphibious Utility Aircraft

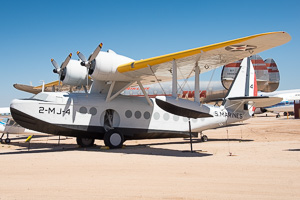

Sikorsky S-43 Baby Clipper NC16934 2-MJ-4 displayed as USMC JRS-1 1061 at Pima © Karsten Palt
Photo ©: Karsten Palt
The Sikorsky S-43 is a twin-engined amphibious airliner for up to 18 passengers and military utility aircraft produced by the US-American manufacturer Sikorsky Aviation Division of United Aircraft Corporation, today Sikorsky Aircraft Corporation. The S-43 was designated JRS-1 by the US Navy and OA-8 by the US Army Air Corps.
The Sikorsky S-43 is a smaller development of the four-engine Sikorsky S-42 Clipper.
Crew2
Passengers15-18
Propulsion2 Radial Engines
Engine ModelPratt & Whitney R-1690-52 Hornet
Engine Power (each)559 kW750 hp
Speed306 km/h165 kts
  190 mph
Service Ceiling6.096 m20.000 ft
Range1.248 km674 NM
776 mi.
Empty Weight5.783 kg12.750 lbs
max. Takeoff Weight8.662 kg19.096 lbs
Wing Span26,21 m85 ft 12 in
Wing Area72,5 m²780 ft²
Length15,60 m51 ft 2 in
Height5,38 m17 ft 8 in
First Flight1935
Production Statusout of production
Total Production53
Developed fromSikorsky S-42
Data for (Version)Sikorsky JRS-1 Baby Clipper

[Photo-ID: 10354] © Karsten Palt 2014-05-28
Sikorsky JRS-1, , , c/n 4346,© Karsten Palt, 2014Sikorsky
JRS-1

under restoration
NASM Udvar Hazy Center [Chantilly, VA]
[Photo-ID: 10355] © Karsten Palt 2014-05-28
Sikorsky JRS-1, , , c/n 4346,© Karsten Palt, 2014Sikorsky
JRS-1

under restoration
NASM Udvar Hazy Center [Chantilly, VA]
[Photo-ID: 11199] © Karsten Palt 2015-06-03
Sikorsky S-43 Baby Clipper, , NC16934, c/n 4325,© Karsten Palt, 2015Sikorsky
S-43 Baby Clipper
Reg.: NC16934
c/n: 4325

displayed as USMC JRS-1 1061
Pima Air and Space Museum [Tucson, AZ]
[Photo-ID: 11200] © Karsten Palt 2015-06-03
Sikorsky S-43 Baby Clipper, , NC16934, c/n 4325,© Karsten Palt, 2015Sikorsky
S-43 Baby Clipper
Reg.: NC16934
c/n: 4325

displayed as USMC JRS-1 1061
Pima Air and Space Museum [Tucson, AZ]
