Jakowlew / Yakovlev Jak-18T / Yak-18T

Trainer / Light Utility Aircraft

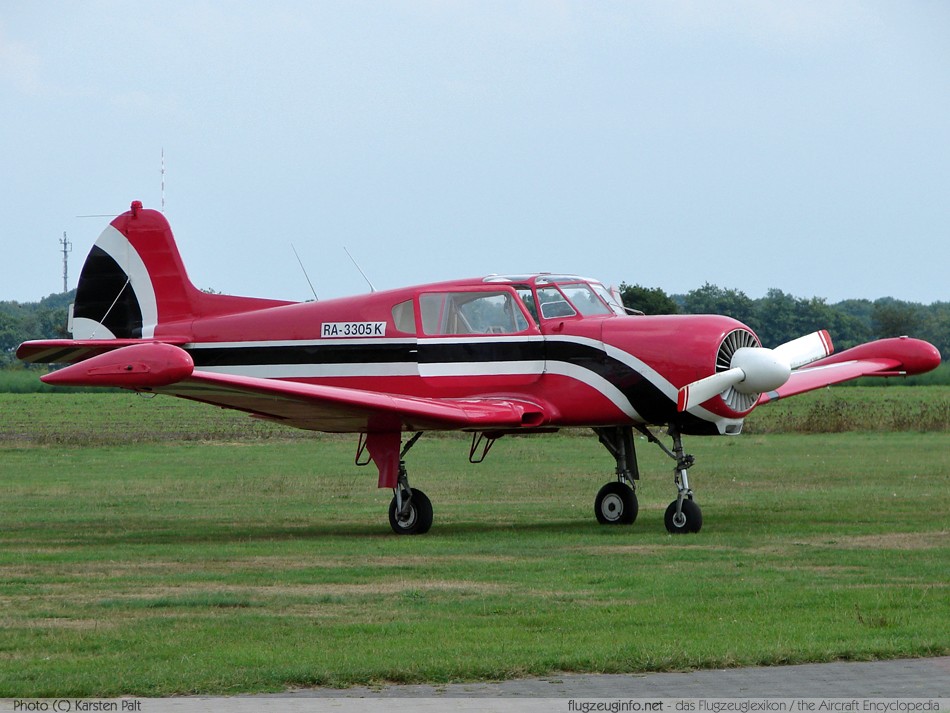

Jakovlev / Jakowlew / Yakovlev Ja-18T / Yak-18T RA-3305K © Karsten Palt
Photo ©: Karsten Palt
The Yakovlev Yak-18T is a single-engine four-seat trainer and light utility aircraft developed by the Soviet Design Bureau OKB Yakovlev (OKB-115), today A.S. Yakovlev Design Bureau JSC, Russia.
Although developed based on the Yakovlev Yak-18, the Yak-18T shares not many component with the Yak-18. The Yak-18T is fully aerobatic capable.
Crew1-2
Passengers3
Propulsion1 Radial Engine
Engine ModelVedeneyev M-14PF
Engine Power298 kW400 hp
Speed296 km/h160 kts
  184 mph
Service Ceiling5.500 m18.045 ft
Range759 km410 NM
472 mi.
Empty Weight1.217 kg2.683 lbs
max. Takeoff Weight1.650 kg3.638 lbs
Wing Span11,16 m36 ft 7 in
Wing Area18,9 m²203 ft²
Length8,39 m27 ft 6 in
Height3,40 m11 ft 2 in
First Flight1967
Production Statusout of production
Production Range1973-2002
Total Production613
Developed fromJakowlew Jak-18 / Yakovlev Yak-18
ICAO CodeY18T
Data for (Version)Yakovlev Yak-18T / Jakowlew Jak-18T
VariantsTechnoavia SM94

next aircraft
[Photo-ID: 7369] © Karsten Palt 2013-09-06
Yakovlev Yak-18T, , D-EYBH, c/n ,© Karsten Palt, 2013Yakovlev
Yak-18T
Reg.: D-EYBH

Oldtimer-Fliegertreffen 2013 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 7738] © Karsten Palt 2013-08-10
Yakovlev Yak-18T, , D-EYBH, c/n ,© Karsten Palt, 2013Yakovlev
Yak-18T
Reg.: D-EYBH

Flugtage Bautzen 2013 [Bautzen (EDAB)]
[Photo-ID: 13596] © Karsten Palt 2016-09-10
Yakovlev Yak-18T, , D-EYBH, c/n ,© Karsten Palt, 2016Yakovlev
Yak-18T
Reg.: D-EYBH

Oldtimer-Fliegertreffen 2016 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 3266] © Hartmut Ehlers 2008-06-07
Yakovlev Yak-18T, , HA-HUF, c/n 22202034143,© Hartmut Ehlers, 2008Yakovlev
Yak-18T
Reg.: HA-HUF
c/n: 22202034143

One of many foreign a/c that followed the invitation by hfc Berlin, Lufthansa\\
hfc Fly-in 2008 [Berlin-Tempelhof (EDDI / THF)]
[Photo-ID: 2579] © Karsten Palt 2009-09-04
Yakovlev Yak-18T, , LY-ALW, c/n ,© Karsten Palt, 2009Yakovlev
Yak-18T
Reg.: LY-ALW

Oldtimer-Fliegertreffen 2009 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 2719] © Karsten Palt 2009-09-05
Yakovlev Yak-18T, , LY-PEP, c/n ,© Karsten Palt, 2009Yakovlev
Yak-18T
Reg.: LY-PEP

Oldtimer-Fliegertreffen 2009 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 2731] © Karsten Palt 2009-09-05
Yakovlev Yak-18T, , RA-1951K , c/n ,© Karsten Palt, 2009Yakovlev
Yak-18T
Reg.: RA-1951K

Oldtimer-Fliegertreffen 2009 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 621] © Karsten Palt 2007-09-08
Yakovlev / Jakowlew Yak-18T / Jak-18T, , RA-1951K , c/n ,© Karsten Palt, 2007Yakovlev / Jakowlew
Yak-18T / Jak-18T
Reg.: RA-1951K

Oldtimer-Fliegertreffen 2007 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 1960] © Karsten Palt 2009-04-04
Yakovlev / Jakowlew Yak-18T / Jak-18T, , RA-44446, c/n ,© Karsten Palt, 2009Yakovlev / Jakowlew
Yak-18T / Jak-18T
Reg.: RA-44446

Luftfahrtmuseum Manfred Pflumm [Schwenningen (EDTS)]
